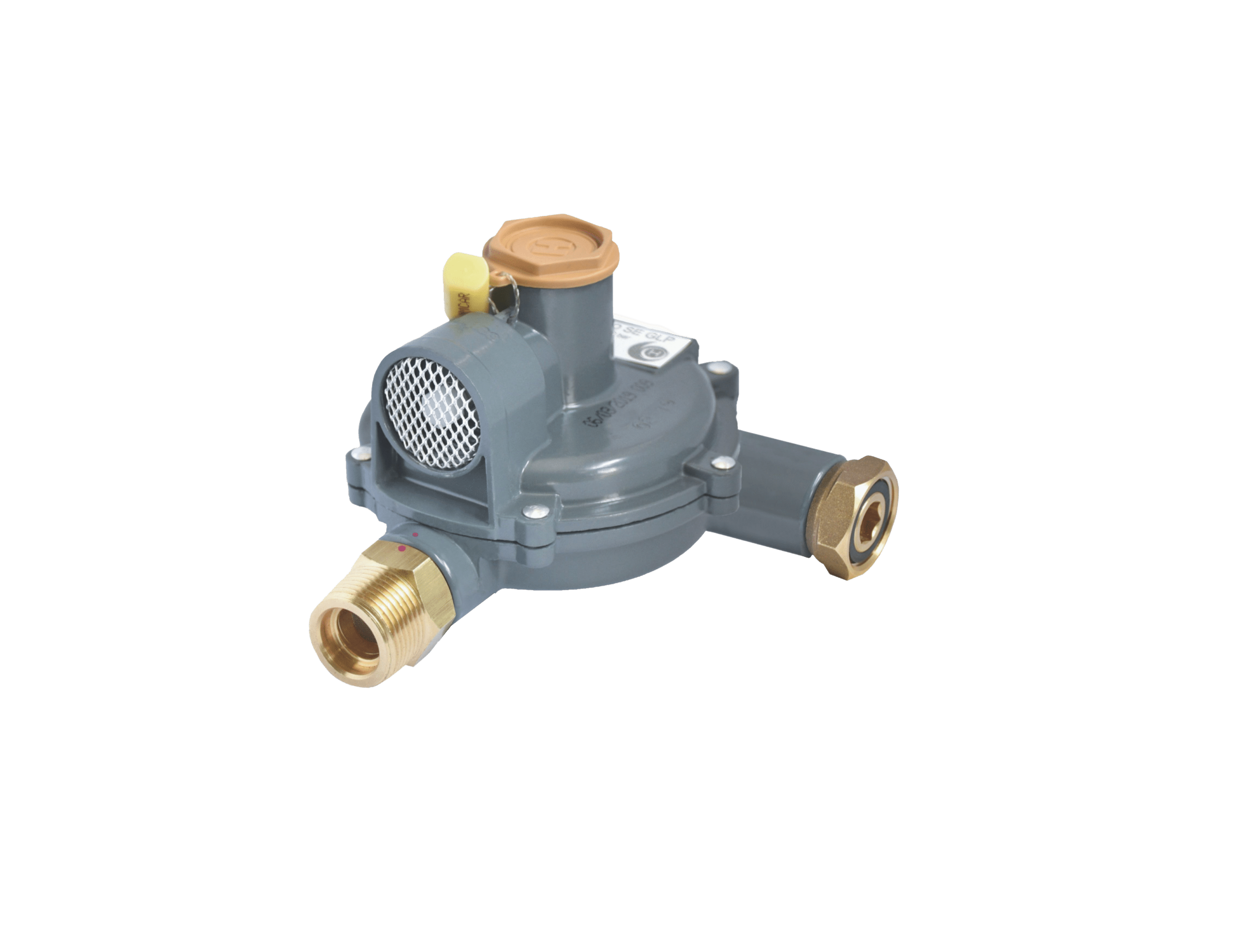

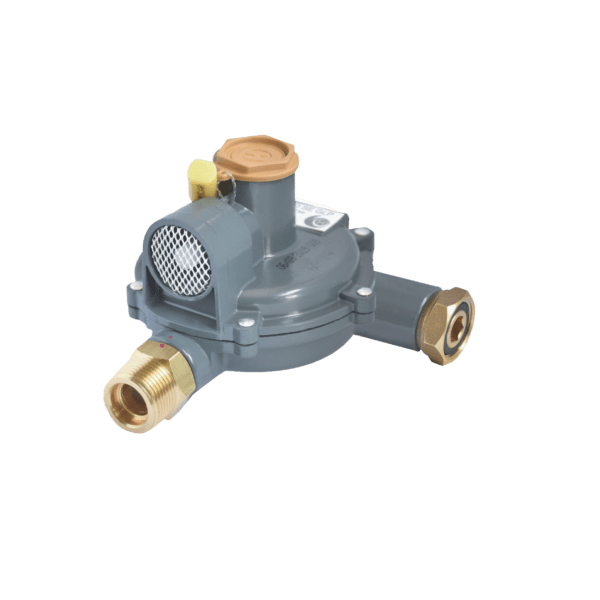

Regulator R4 UPSO 90° Direct Acting Second Stage LPG 35 mbar 1/2 NPTm x G 3/4 h JP 199360 BTU/h LPG

Regulador de uso externo para instalaciones residenciales de gas. Norma de Referencia Con diferentes caudales según la aplicación y dispositivo de seguridad Válvula de Alivio, Corte por Baja Presión a la entrada
y rotura de diafragma..

SKU: 410885 Categories: Gas Solutions, LPG, Gas Products, Gas Regulation Tags: Direct Acting, Domestic, R4 UPSO 90° Regulator, External Use, R4 UPSO 90° Regulator

Description

Presión de Entrada MIN. 0.8 bar (11.6 psi). Presión de Entrada MÁX. 1.2 bar (17.4 psi). Presión de Salida 35 mbar (14 “c.a.). Caudal con presión
de entrada MÍN Caudal Kg/h GLP: 4. con presión de ajuste Caudal Kg/h GLP: 6. Conexión Entrada 1/2 NPTm Conexión Salida G 3/4 h JP

Additional information

Brand	Humcar
Connection Input	1/2 NPTm
Connection Output	G 3/4 h JP
Type of Adjustment	Not Adjustable
Stage	Second Stage
Security System	low inlet pressure shutdown and diaphragm rupture, Relief Valve, Relief Valve
Maximum inlet pressure	17.4
Minimum inlet pressure	11.6
Outlet pressure	35 mbar
Nominal flow rate	199360 BTU/h LPG

Documents

Technical Data

Quick comparison

Regulator R4 UPSO 90° Direct Action Second Stage LPG 35 mbar 1/2 NPTm x G 3/4 h JP 199360 BTU/h LPG Remove Low Pressure Cut-Off Regulator RCBP Self-Compensating Second Stage GN 50 mbar 1/2" NPT h x 1/2" NPT h 20 m³/ h GN Remove Regulator R102 Direct Acting Single Stage LPG 28 mbar Quick Coupling Ø35 mm x 3/8" Hose Coupling 64792 BTU/h LPG Remove Regulator R10 RVI Direct Acting Single Stage LPG 28 mbar 1" NPT h x 1" NPT h 768960 BTU/h LPG Remove Regulator R10 Adjustable Direct Acting First Stage LPG 0.5 - 12.4 psi 3/4" NPT h x 3/4" NPT h 215736 BTU/h LPG Remove Regulator R10 Direct Acting Second Stage LPG 28mbar 3/4 "NPTh x 3/4 "NPTh 445000 BTU/h LPG Remove

Name Regulator R4 UPSO 90° Direct Action Second Stage LPG 35 mbar 1/2 NPTm x G 3/4 h JP 199360 BTU/h LPG Remove Low Pressure Cut-Off Regulator RCBP Self-Compensating Second Stage GN 50 mbar 1/2" NPT h x 1/2" NPT h 20 m³/ h GN Remove Regulator R102 Direct Acting Single Stage LPG 28 mbar Quick Coupling Ø35 mm x 3/8" Hose Coupling 64792 BTU/h LPG Remove Regulator R10 RVI Direct Acting Single Stage LPG 28 mbar 1" NPT h x 1" NPT h 768960 BTU/h LPG Remove Regulator R10 Adjustable Direct Acting First Stage LPG 0.5 - 12.4 psi 3/4" NPT h x 3/4" NPT h 215736 BTU/h LPG Remove Regulator R10 Direct Acting Second Stage LPG 28mbar 3/4 "NPTh x 3/4 "NPTh 445000 BTU/h LPG Remove


Reference 410885 411518 610068 411245 411255 411265

Rating

Stock

Availability

Add to cart

Description Regulador de uso externo para instalaciones residenciales de gas. Norma de Referencia Con diferentes caudales según la aplicación y dispositivo de seguridad Válvula de Alivio, Corte por Baja Presión a la entrada y rotura de diafragma.. Regulator for internal use for residential gas installations. Reference Standard NTC-3293. With different flow rates according to the application and safety device Proportional Shut-Off and Low Pressure Cut-Off at the inlet. Regulator for external use for installations with portable LPG cylinders. Reference Standard NTC-3873 With different flow rates according to the application and safety device. Regulator for external use for residential installations. Reference Standard NTC-3873. With different flow rates according to the application and safety device relief valve. Regulator for external use for residential and industrial gas installations. Reference Standard With different flow rates according to the application and safety device. Regulator for external use for residential gas installations. Reference Standard NTC-3873. With different flow rates according to the application and safety device relief valve.

Content Presión de Entrada MIN. 0.8 bar (11.6 psi). Presión de Entrada MÁX. 1.2 bar (17.4 psi). Presión de Salida 35 mbar (14 "c.a.). Caudal con presión de entrada MÍN Caudal Kg/h GLP: 4. con presión de ajuste Caudal Kg/h GLP: 6. Conexión Entrada 1/2 NPTm Conexión Salida G 3/4 h JP Inlet Pressure MIN. bar (3 psi). Inlet Pressure MAX. bar (10 psi). Outlet Pressure 50 mbar (20 "c.a.). Flow rate at inlet pressure inlet pressure MIN. m³/ h GN 20. with set pressure m³/ h GN 19. Inlet connection 1/2" NPT h Outlet connection 1/2" NPT h Inlet Pressure MIN. 0.7 bar (10.2 psi). MAX Inlet Pressure. 7.5 bar (108.8 psi). Outlet Pressure 28 mbar (11.2 "w.c.). Flow rate at inlet pressure inlet pressure MIN Flow rate Kg/h LPG: 1.3. with set pressure Flow rate Kg/h LPG: . Inlet connection Quick coupling Ø35 mm Outlet connection Hose coupling 3/8". Inlet Pressure MIN. 1.04 bar (15.1 psi). MAX Inlet Pressure. 6.9 bar (100 psi). Outlet Pressure 28 mbar (11.2 "w.c.). Flow rate at inlet pressure MIN Flow rate 15.4Kg/h LPG, at set pressure Flow rate 22.1Kg/h LPG. Connection Inlet 1" NPT h Connection Outlet 1" NPT h Inlet Pressure MIN. 1 bar (14.5 psi). Inlet Pressure MAX. 4.2 bar (60.9 psi). Outlet Pressure mbar ("c.a.). Flow rate at inlet pressure inlet pressure MIN Flow rate Kg/h LPG: 0. with set pressure Flow rate Kg/h LPG: . Inlet connection 3/4" NPT h Outlet connection 3/4" NPT h Min. inlet pressure 0.2 bar (2.9 psi). Max. inlet pressure 1.4 bar (20.3 psi). Outlet pressure 28 mbar (11,2 "c.a.). Flow rate at min. inlet pressure 8.9 kg/h LPG (445,000 BTU/h LPG). Flow rate at set pressure 13.7Kg/h LPG (685,300 BTU/h LPG). Inlet connection 3/4" NPT h Outlet connection 3/4" NPT h

Additional Information

Brand	Humcar
Connection Input	1/2 NPTm
Connection Output	G 3/4 h JP
Type of Adjustment	Not Adjustable
Stage	Second Stage
Security System	low inlet pressure shutdown and diaphragm rupture, Relief Valve, Relief Valve
Maximum inlet pressure	17.4
Minimum inlet pressure	11.6
Outlet pressure	35 mbar
Nominal flow rate	199360 BTU/h LPG

Brand	Humcar
Connection Input	1/2" NPT h
Connection Output	1/2" NPT h
Type of Adjustment	Not Adjustable
Stage	Second Stage
Security System	Proportional shut-off and low pressure cut-off at the inlet.
Maximum inlet pressure	10
Minimum inlet pressure	3
Outlet pressure	50 mbar
Nominal flow rate	20 m³/ h GN

Brand	By Humcar
Connection Input	Quick Coupling Ø35 mm
Connection Output	3/8" Hose Coupling
Type of Adjustment	Not Adjustable
Stage	Single Stage
Security System	Not applicable.
Maximum inlet pressure	108.8
Minimum inlet pressure	10.2
Outlet pressure	28 mbar
Nominal flow rate	64792 BTU/h LPG

Brand	Humcar
Connection Input	1" NPT h
Connection Output	1" NPT h
Type of Adjustment	Not Adjustable
Stage	Single Stage
Security System	Relief Valve.
Maximum inlet pressure	100
Minimum inlet pressure	15.1
Outlet pressure	28 mbar
Nominal flow rate	768960 BTU/h LPG

Brand	Humcar
Connection Input	3/4" NPT h
Connection Output	3/4" NPT h
Type of Adjustment	Adjustable
Stage	First Stage
Security System	Not applicable.
Maximum inlet pressure	60.9
Minimum inlet pressure	14.5
Outlet pressure	0.5 - 12.4 psi
Nominal flow rate	215736 BTU/h LPG

Brand	Humcar
Connection Input	3/4" NPT h
Connection Output	3/4" NPT h
Type of Adjustment	Not Adjustable
Stage	Second Stage
Security System	Relief Valve.
Maximum inlet pressure	20.3 psi
Minimum inlet pressure	2.9 psi
Outlet pressure	28 mbar
Nominal flow rate	445000 BTU/h LPG
